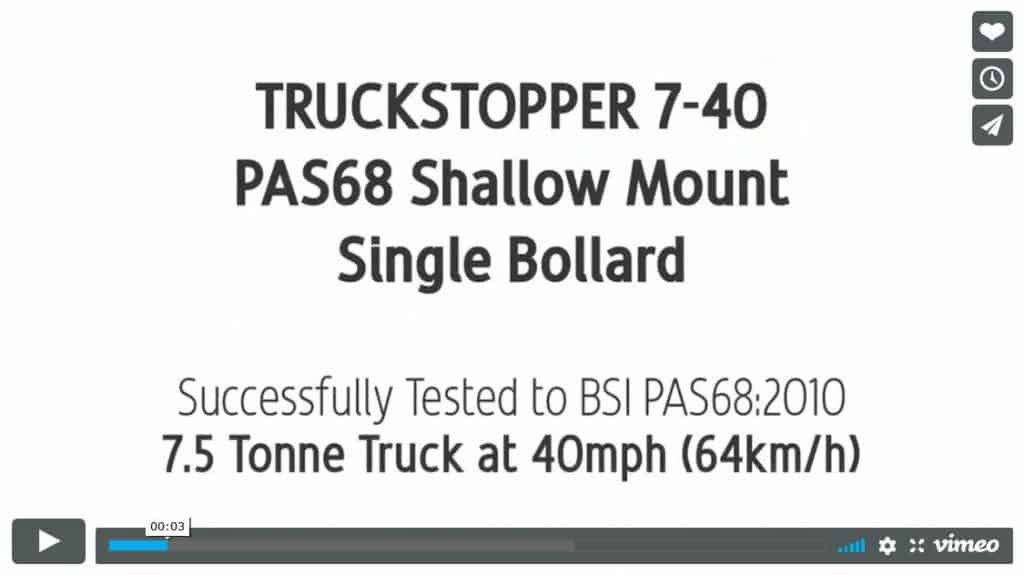

The new technology Truckstopper 7-40 bollard has a small super lightweight base plate – 46kg only. This patent pending design is a technology breakthrough in single shallow footing bollard systems of 200mm deep that will mitigate a 7.5-ton truck at 40 mph or 64 km at 90 degrees from breaking through the security line.
The 200mm deep shallow single bollard will also reduce the need to re-divert utilities. The system is the most economical on the market and very aesthetically pleasing. This bollard is small and easy to install. This system is designed to follow the contours of the ground and can go around corners. If the post gets damaged after an attack, it can be removed from the slipper box and replaced with no need to remove or replace the concrete foundation.
Once fitted, the only maintenance is to repaint when needed, or the bollard can be covered with a mild or stainless steel shroud.

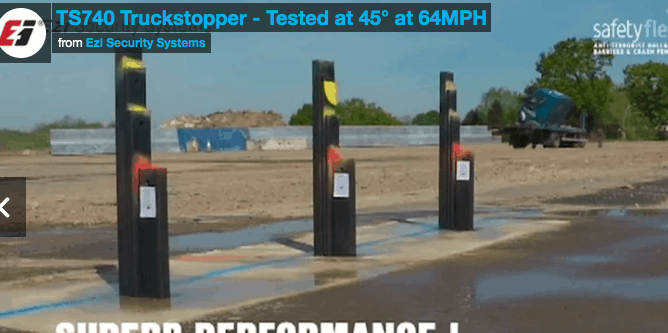

Tested as a single bollard.
Rated Diameter of oval shroud of 260x135mm to cover internal spring
Performance rating: V/7500[N2]/64/90:7.1/14.8
