The new technology breakthrough in shallow mount rising bollard systems, it will keep bollard systems and groundwork costs to a fraction of the old large systems. This new patent granted bollard rising system is designed by our new Micro Engineering Division to cope with today’s demand for shallow mount systems in both manual and hydraulic systems.
It requires no mains power as it is powered by a cordless drill. A new shallow rising bollard, it will mitigate a 7.2 ton truck travelling at 40 mph or 64 km at 90 degrees from breaking through the security line. After impact the bollard still worked. This system will also reduce the need to re-divert utilities. The system is the most economical on the market for both bollard systems and installation. It is also very low maintenance, once fitted as a stand alone single unit, it can follow the contours of the ground. After impact if the bollard or any parts in the system are damaged all the parts can be removed from the outer case that is concreted into the foundation and replaced. When fitted with a stainless steel bollard cover it is very aesthetically pleasing.

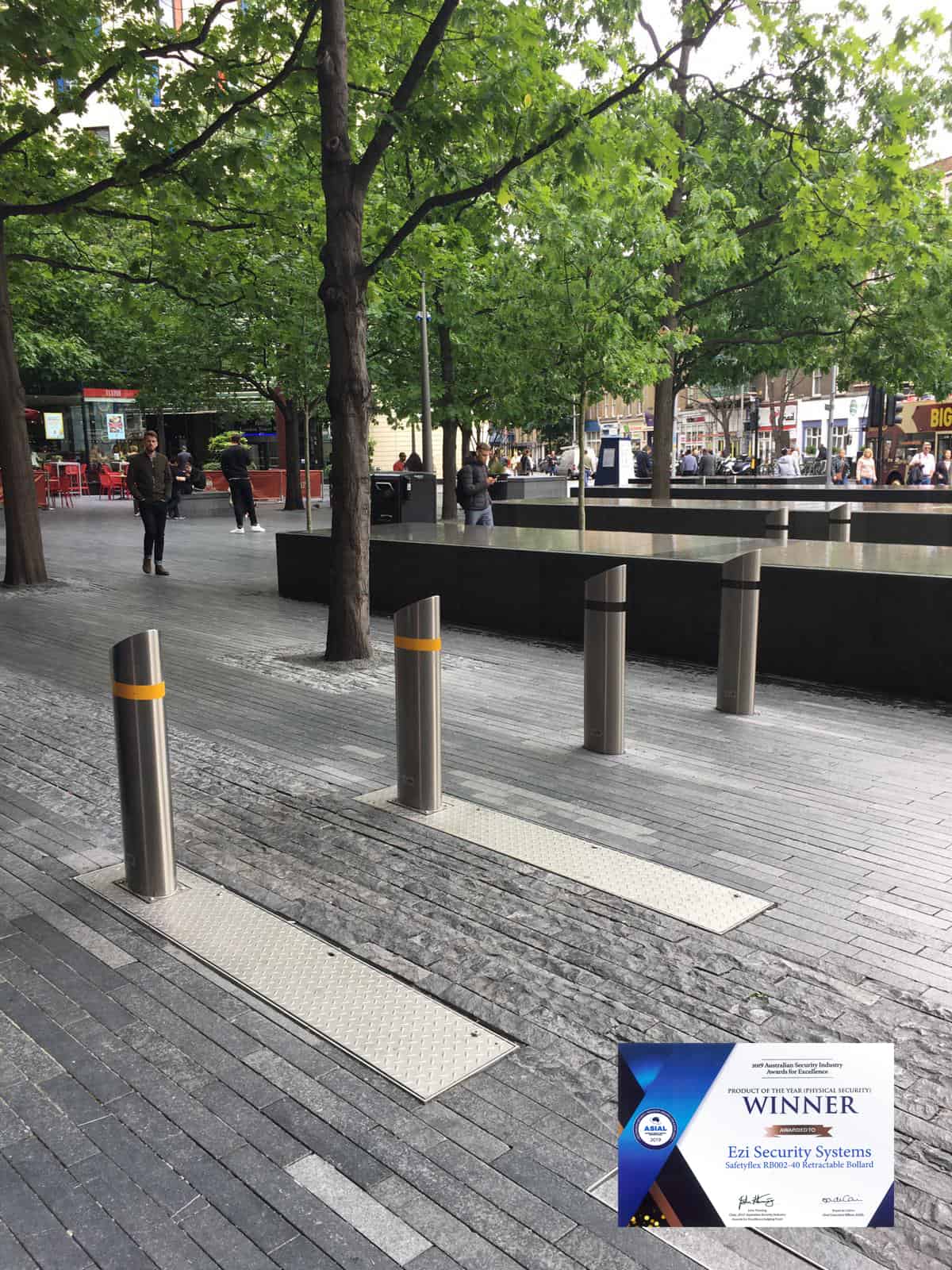

RB002-40 was awarded as 2019’s Product of the year award by the Australian Security Industry Awards for Excellence.
This product is tested as a single bollard.
Specification Single bollard installation with footprint 3000 mm x 1400 mm
Dimensions: 970 x W200 Breadth: 280
Foundation: C – Depth >0.5m below ground level
Height from FFL to highest point of the shroud: 1100mm
